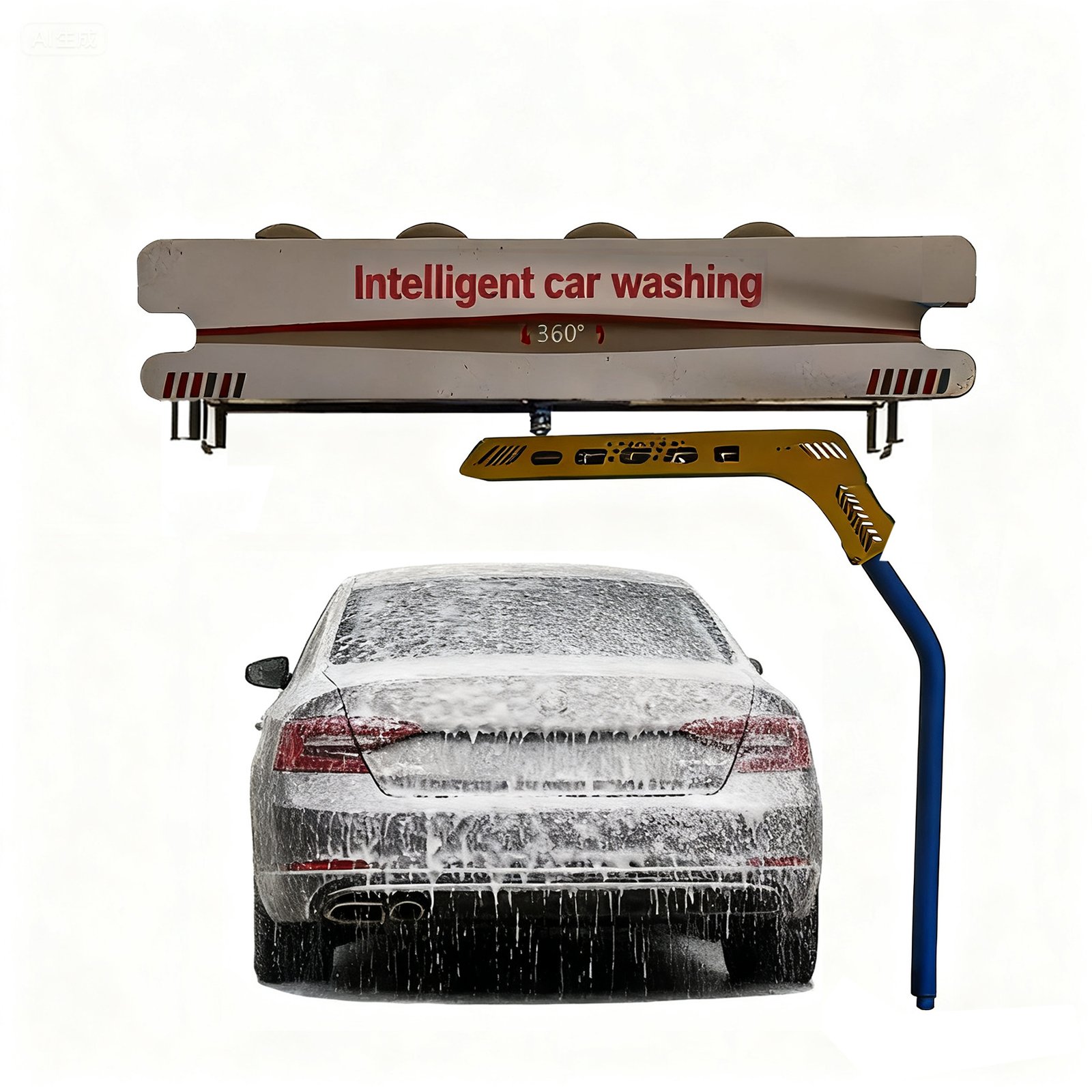

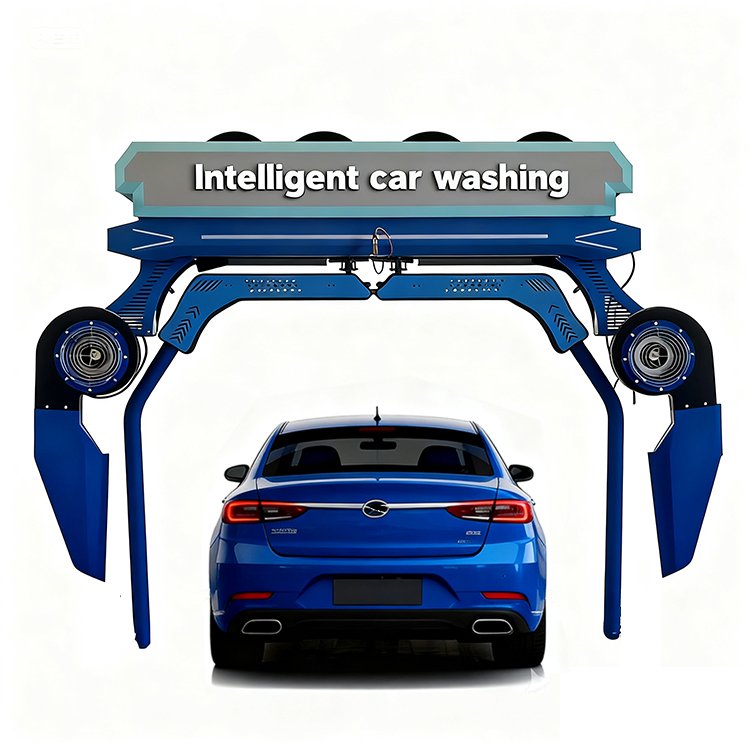

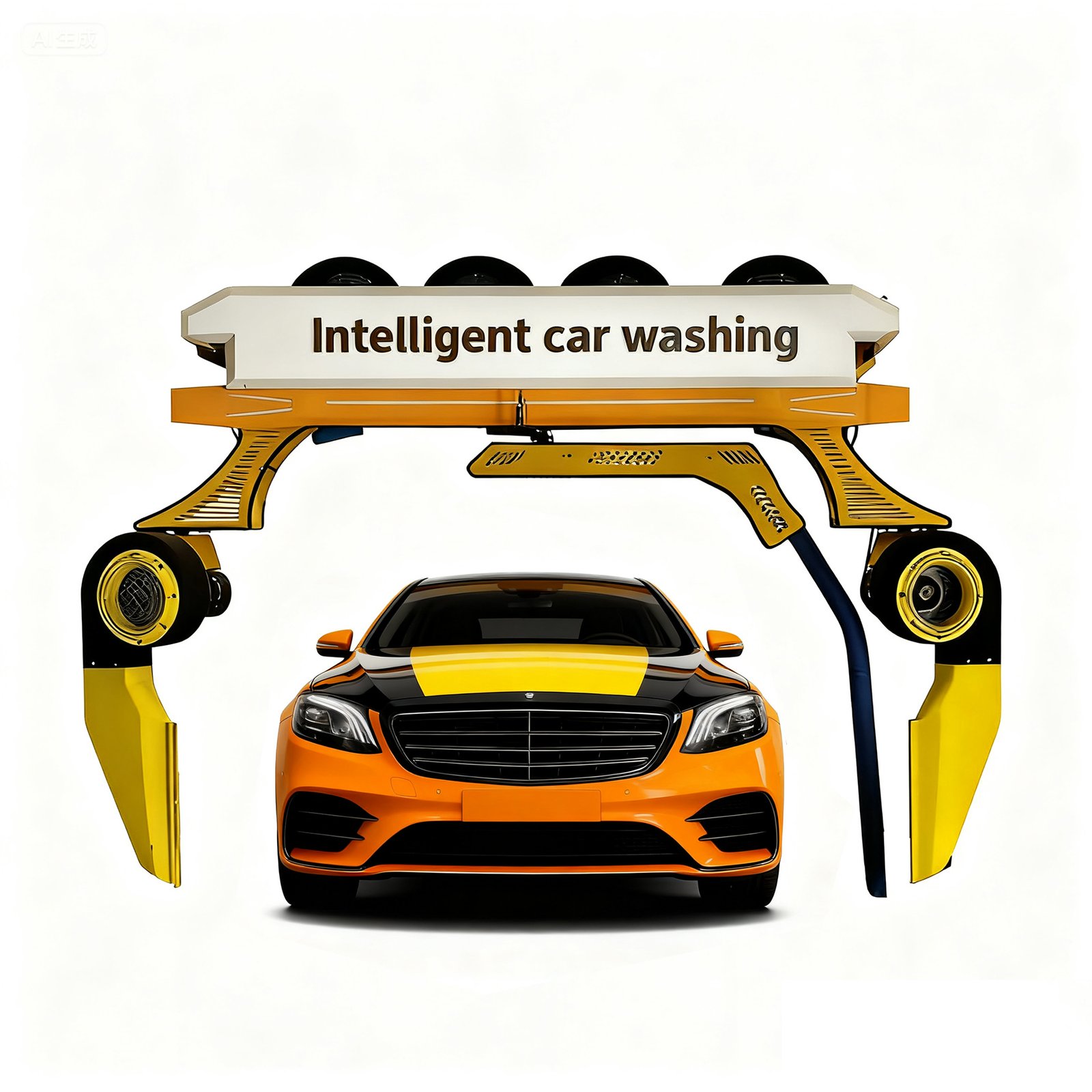

The DZHT-GANTRY-20KW is a commercial automatic car wash equipment solution for operators who need a reliable touchless car wash machine, fast installation support, and customizable payment options. It is suitable for Europe, the Middle East, South America, Southeast Asia, and other export markets.
As a car wash equipment manufacturer and car wash machine supplier in China, Beijing Dongzheng Huatai Technology Co., Ltd. provides project-ready systems with water, foam, wax, payment, and wash process configuration. The system can be adapted for attended or unattended car wash stations.
The machine supports project-based customization, including voltage checks, payment method selection, language interface, voice prompts, branding, spare parts planning, and remote technical support. It is a strong fit for distributors, car wash investors, and operators searching for automatic car wash equipment for commercial deployment.
Recommended applications include car wash shops, gas stations, parking lots, fleet wash sites, auto detailing centers, shopping mall parking areas, and 24/7 wash service locations. The compact equipment layout helps reduce installation complexity while keeping the wash process professional.
| Model | DZHT-GANTRY-20KW |
|---|---|
| Product Type | Touchless automatic car wash equipment |
| Power Requirement | 380V / 50Hz / 12W control power |
| Circuit Breaker | 63A |
| Fan Motor Power | 20 kW |
| Walking Motor Power | 11 kW |
| Drying Function | Not dried |
| Wax Proportioning Power | 0.75 kW |
| Wash Fluid Proportioning Power | 0.75 kW |
| Maximum Vehicle Size | L 6.5 m x W 4 m x H 3.5 m |
| Overall Dimensions | 2610 x 3200 x 3000 mm |
| Reference Transport / Installation Dimensions | 5300 x 2100 x 1950 mm |
| Pump Pressure | 0-100 bar, adjustable by pressure valve |
| Wheel Wash Water Pressure | 0-100 bar |
| Single Wash Water Consumption | 20-40 L |
| Single Wash Fluid Consumption | 100-180 ml |
| Single Wax Consumption | 50-200 ml |
| Single Wash Power Consumption | 0.4-0.6 kWh |
| Arm Structure | Double arm, non-rotatable design |
| Payment Options | Coin payment by default. Card payment and e-wallet payment can be configured for selected regions after confirmation. |
| Billing Method | Flexible charging rules, including time-based consumption and customized site plans |
| Supported Functions | Clean water, foam, wax, dust suction, hand washing, and related customized wash functions |
| Language / Voice Prompt | Multi-language customization supported for different countries and regions |
| Wash Quantity Statistics | Supported |
| Material | Steel structure |
| Installation Method | Outdoor installation |
| Production Cycle | About 45 days |
| MOQ | 1 set |
| Payment Terms | T/T |
| Warranty | 1 year quality guarantee |
| After-Sales Support | Remote video guidance, operation manual, video installation demo, spare parts support, video diagnosis, and lifetime after-sales service |
| Delivery Scope | Automatic car wash equipment, high-pressure water gun, cantilever, and bracket. Optional configurations can be confirmed before production. |
Yes. Beijing Dongzheng Huatai Technology Co., Ltd. can customize language, voice prompts, payment method, voltage configuration, wash programs, and exterior branding according to local market requirements.
Yes. The equipment is designed for commercial wash sites, fuel stations, parking facilities, auto detailing shops, and unattended car wash projects that need stable operation and flexible payment options.
Coin payment is available by default. Card payment and e-wallet payment can be configured in many regions. Because payment standards differ by country, the exact payment plan should be confirmed before production.
Yes. We provide remote video guidance, installation documents, operation manuals, video diagnosis, and spare parts support. For project-based sites, layout and technical requirements can be checked before shipment.
Yes. The system is suitable for Europe, the Middle East, South America, Southeast Asia, and other export markets. Packaging, documents, voltage, and functional configuration can be matched to the project.
